Raised diamond pattern on 304 stainless sheet for anti-slip flooring in walkways, platforms, ramps and kitchen areas.

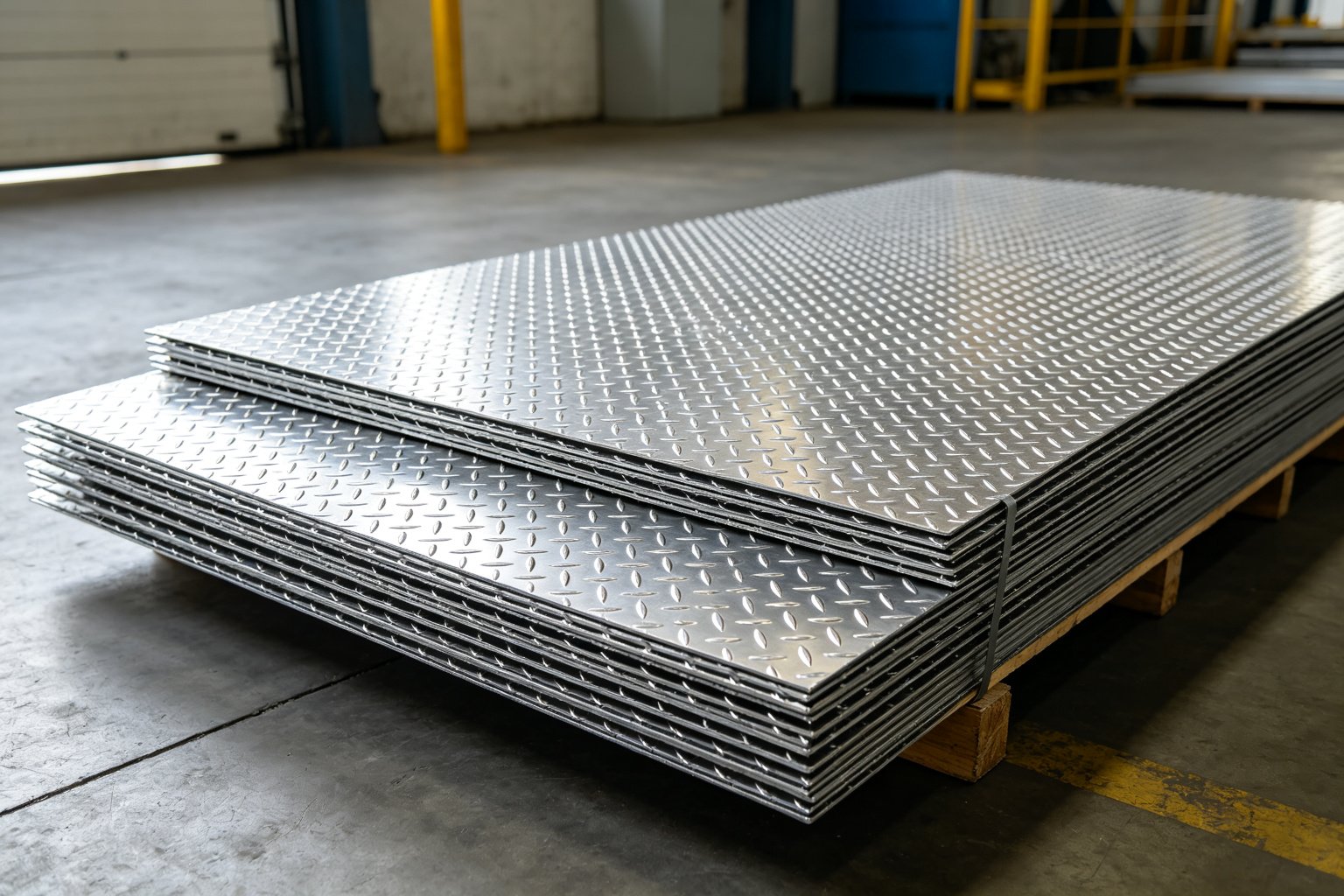

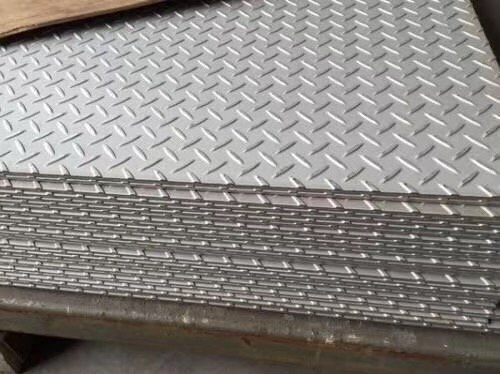

304 stainless steel floor plate is a 304 austenitic stainless sheet with raised diamond (chequer) pattern embossed on the surface. The pattern provides anti-slip performance while the stainless base keeps corrosion resistance in wet and indoor environments.
Key Advantages
Chemical Composition (AISI 304)
| Element | C | Si | Mn | P | S | Cr | Ni |
|---|---|---|---|---|---|---|---|
| Content % | ≤ 0.08 | ≤ 1.00 | ≤ 2.00 | ≤ 0.045 | ≤ 0.030 | 18.0 – 20.0 | 8.0 – 10.5 |
Mechanical Properties
- Tensile strength (σb): ≥ 515 MPa
- Yield strength (σ0.2): ≥ 205 MPa
- Elongation (δ): ≥ 40 %
- Pattern height: 1.0 – 2.0 mm
Standard Sizes
| Parameter | Range |
|---|---|
| Thickness (base) | 1.5 – 6.0 mm |
| Width × Length | 1000 – 1500 × 2000 – 6000 mm |
| Pattern | Diamond / five-bar / one-bar |
| Surface | 2B / No.1 / brushed |
| Standard | ASTM A240 / JIS SUS304 |
Applications
304 floor plate is used in kitchen floors, walkways, industrial platforms, truck and trailer steps, drainage covers, elevator decorative floors and architectural anti-slip cladding. For carbon checker plate see our Q235B floor plate; for aluminum tread plate see 3003 aluminum checkered plate.
Processing & Packaging
Cutting, bending and welding available. Sheets are strapped on wooden pallets with edge protection.
Send thickness, size, pattern and quantity — we confirm price within 24 hours.
